By ARCO, a pioneer in quarter-turn valve technology

In 1980, ARCO introduced its quarter-turn valve system, marking an important milestone in the development of valves for water, gas and heating installations.

ARCO develops valves and systems designed to support reliable operation and facilitate the work of professional installers.

VITAQ is ARCO’s patented anti-scale system, available in a range of valves designed for installations exposed to hard water.
TWIN, ARCO’s patented dual-outlet valve with independent flow control.
With more than 50 years of industrial experience, ARCO designs and manufactures valves subject to defined quality controls and product-specific warranty conditions.

With ARCO’s patented anti-scale system

A pioneer in quarter-turn valve technology

Manufactured in Spain

Ergonomic and compact handles

Compact handles designed for ease of operation

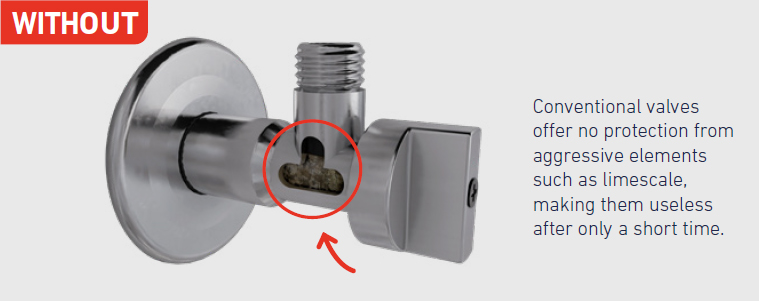

VITAQ ANTI-SCALE SYSTEM FOR INSTALLATIONS EXPOSED TO HARD WATER
A patented system developed by ARCO

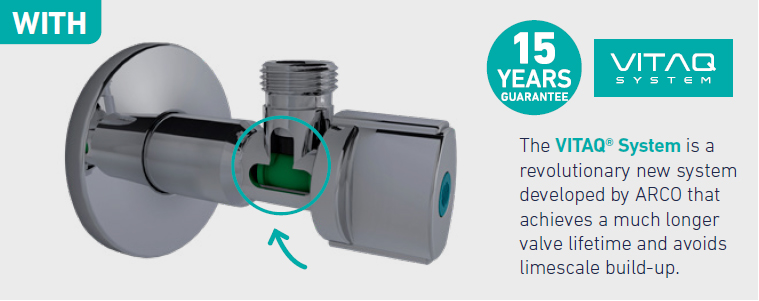

VITAQ is ARCO’s anti-scale system, developed to reduce limescale build-up in the valve operating mechanism.

Features:

Anti-scale system integrated into the valve operating mechanism.
Designed to reduce limescale build-up in the operating mechanism.
Quarter-turn operation.
Compact design.
Suitable for potable-water installations when specified in the applicable product documentation.
Product-specific operating conditions are detailed in the corresponding technical data sheet.

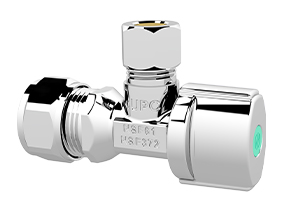

Angle valves

With VITAQ anti-scale system

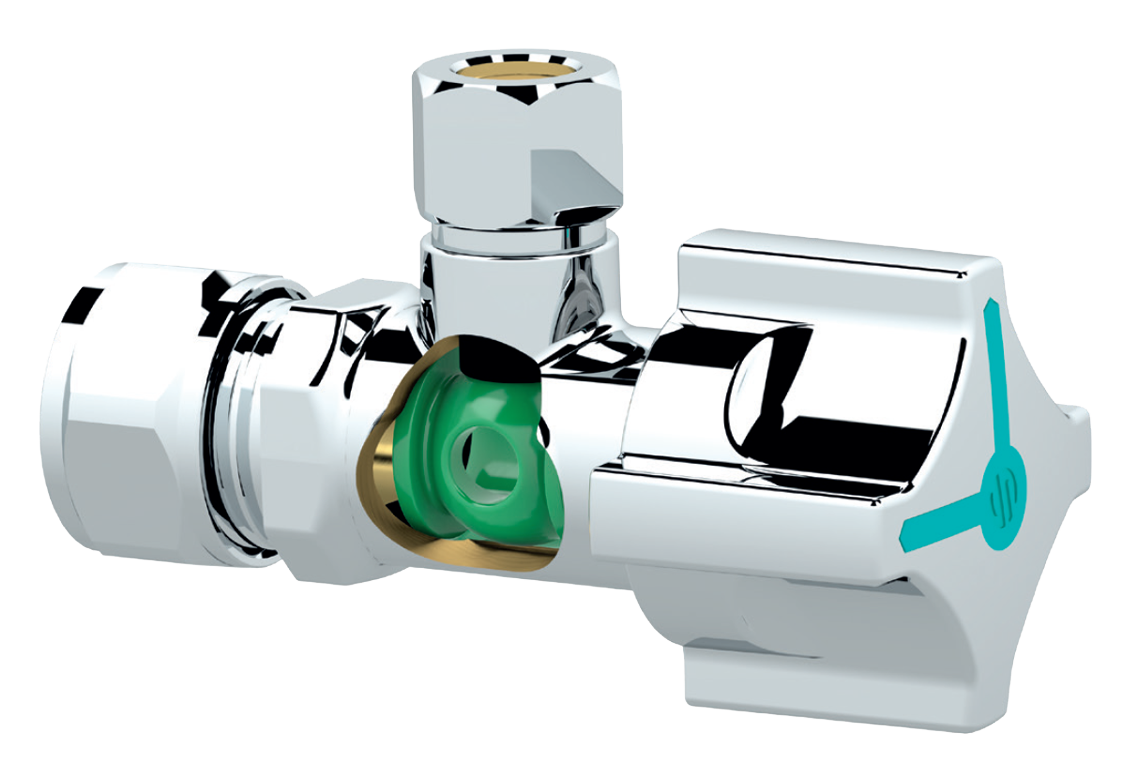

VITAQ angle valves are quarter-turn valves designed to isolate the water supply to an individual terminal fitting during servicing or replacement. Their product features include:

VITAQ system: designed to reduce limescale build-up in the valve operating mechanism.
Stem-ball with 6 mm bore.
Compact chrome-plated VITAQ handle.
Compact, one-piece stamped body.
Double O-ring on the stem-ball.
Every valve undergoes leak testing in accordance with the applicable test conditions.

Product scope:

Quarter-turn valves for potable-water distribution systems in residential and commercial installations. They are designed to isolate the water supply to an individual terminal fitting. For continuous use with hot water above 115 °F, please contact ARCO before installation.

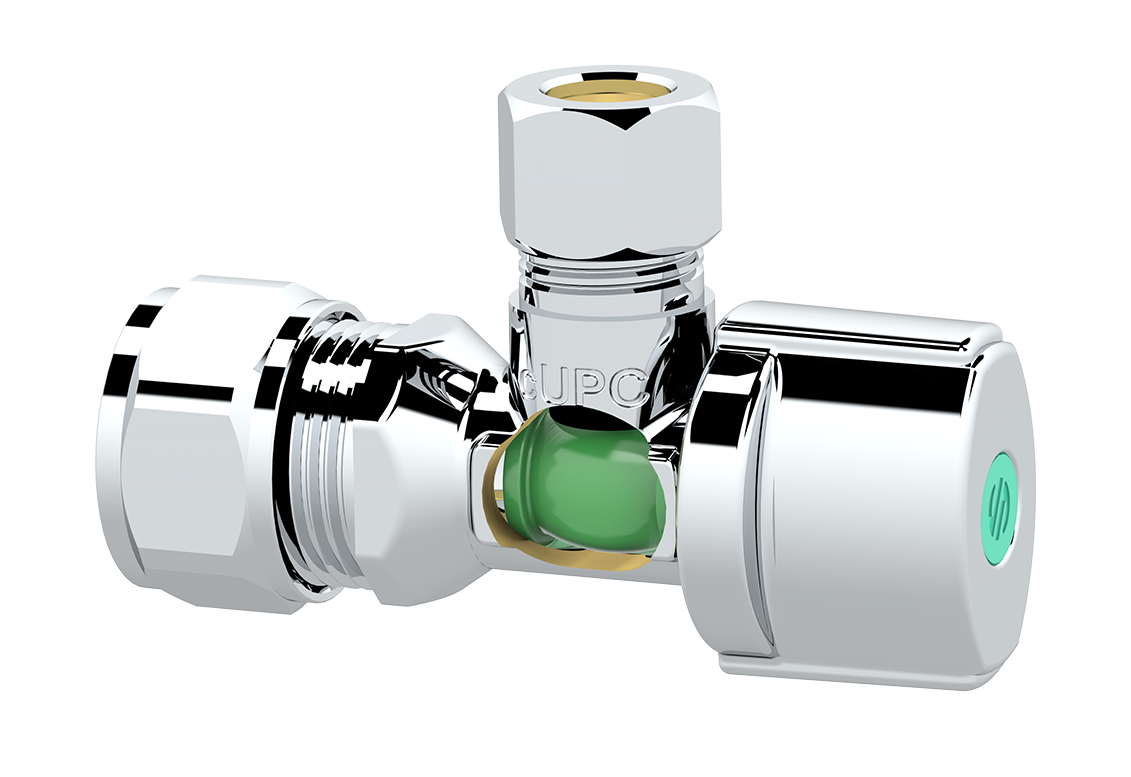

1/4 Turn supply stop Compression x Compression – Angle

Equipped with ARCO’s VITAQ anti-scale system.

Temperature range: 5ºC (40ºF) – 71ºC (160ºF)º
Body material: Lead Free Brass.

ASK FOR A QUOTE

CODE	SIZE
214300	5/8OD – 1/4OD
214310	5/8OD – 3/8OD
214310L	5/8OD – 3/8OD less Nut/Sleeve
214320	5/8OD – 1/2OD

1/4 Turn supply stop FIP x Compression – Angle

Equipped with ARCO’s VITAQ anti-scale system.

Temperature range: 5ºC (40ºF) – 71ºC (160ºF)º
Body material: Lead Free Brass.

ASK FOR A QUOTE

CODE	SIZE
214010	3/8FIP – 3/8OD
214100	1/2FIP – 1/4OD
214110	1/2FIP – 3/8OD
214120	1/2FIP – 1/2OD

1/4 Turn supply stop Compression x Slip Joint – Angle

VITAQ anti-limescale system, more life with a very careful design and finish.

Temperature range: 5ºC (40ºF) – 71ºC (160ºF)º
Body material: Lead Free Brass.

ASK FOR A QUOTE

CODE	SIZE
214340	5/8OD-1/2 Slip Joint

1/4 Turn supply stop FIP x Slip Joint – Angle

Equipped with ARCO’s VITAQ anti-scale system, developed to reduce limescale build-up in the valve operating mechanism.

Temperature range: 5ºC (40ºF) – 71ºC (160ºF)º
Body material: Lead Free Brass.

ASK FOR A QUOTE

CODE	SIZE
214140	1/2FIP – 1/2 Slip-Joint

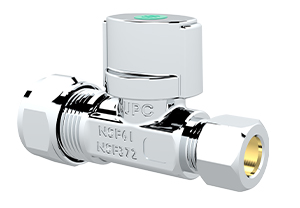

Straight valves

VITAQ with anti-lime system inside

VITAQ straight valves are quarter-turn stop valves designed to be installed immediately upstream of a terminal fitting, allowing the water supply to be isolated during servicing or replacement.

VITAQ System: More life, less limescale at higher temperatures.
Stem-ball-clip with an anti-tamper system.
Handle with VITAQ index: Ergonomic, compact, and chrome-plated for more endurance.
One-piece stamped body, compact and with high endurance.
Double O-ring stem-ball reinforces external leak tightness.
100% of the valves are leak tested.

Product scope:

1/4 turn valves for use in potable water distribution networks for residential and commercial applications, where it is needed to shut off individually the water supply. For continuous hot water use above 115 ºF, please contact us before using.

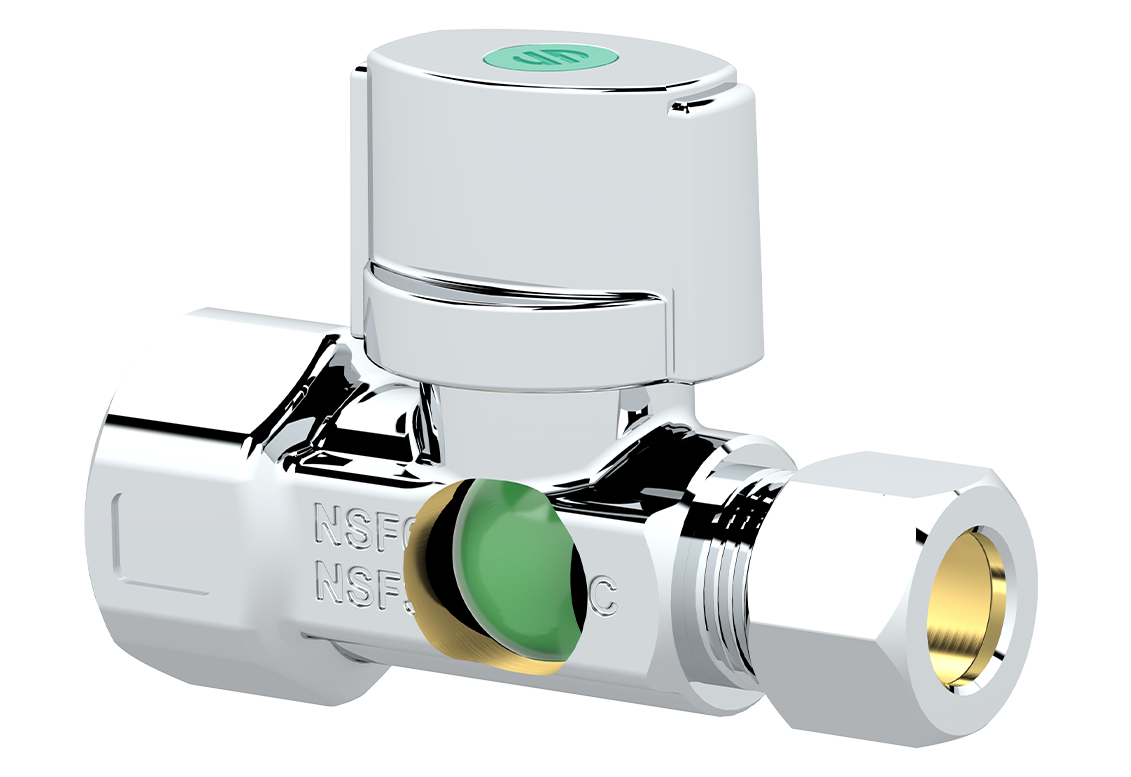

1/4 Turn supply stop FIP x Compression – Straight

VITAQ anti-limescale system, more life with a very careful design and finish.

Temperature range: 5ºC (40ºF) – 71ºC (160ºF)º
Body material: Lead Free Brass.

ASK FOR A QUOTE

CODE	SIZE
215010	3/8FIP – 3/8OD
215110	1/2FIP – 3/8OD

1/4 Turn supply stop Compression x Compression – Straight

VITAQ anti-limescale system, more life with a very careful design and finish.

Temperature range: 5ºC (40ºF) – 71ºC (160ºF)º
Body material: Lead Free Brass.

ASK FOR A QUOTE

CODE	SIZE
215210	3/8OD – 3/8OD
215300	5/8OD – 1/4OD
215310	5/8OD – 3/8OD
215320	5/8OD – 1/2OD

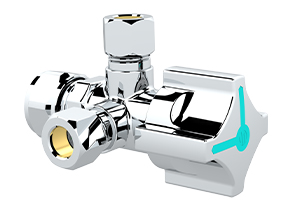

TWIN Dual shut off valve

VITAQ with anti-lime system inside

1/4 turn system, one handle, four separate positions safe time, tight spaces

DUAL VITAQ VALVES are quarter-turn angle stop valves designed to be placed immediately upstream of a terminal fitting to shut off the water supply for servicing or replacement.

VITAQ System: more life, less limescale at higher temperatures.
Stem-ball with 6 mm bore: More flow, less energy loss.
Handle with VITAQ index: Ergonomic and compact and chrome-plated for more endurance.
One-piece stamped body, compact and with high endurance.
Double O-ring stem-ball, reinforces external leak tightness.
100% of the valves are leak tested.

Product scope:

TWIN ¼ turn supply stop FIP x Compression – DUAL outlet

VITAQ anti-limescale system, more life with a very careful design and finish.

Temperature range: 5ºC (40ºF) – 71ºC (160ºF)º
Body material: Lead Free Brass.

ASK FOR A QUOTE

CODE	SIZE
2141015	1/2FIP – 1/4OD × 3/8OD
2141115	1/2FIP – 3/8OD × 3/8OD

TWIN ¼ turn supply stop Compression x Compression – DUAL outlet

VITAQ anti-limescale system, more life with a very careful design and finish.

Temperature range: 5ºC (40ºF) – 71ºC (160ºF)º
Body material: Lead Free Brass.

ASK FOR A QUOTE

CODE	SIZE
2143015	5/8OD – 1/4OD × 3/8OD
2143115	5/8OD – 3/8OD × 3/8OD

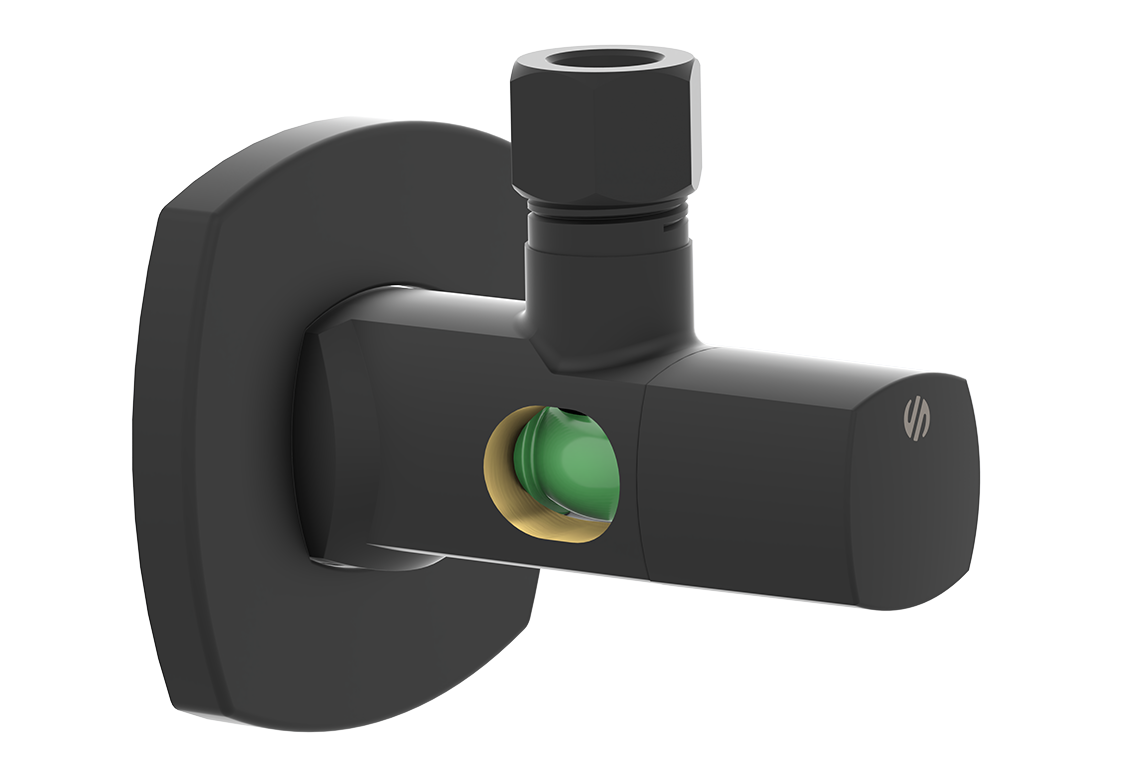

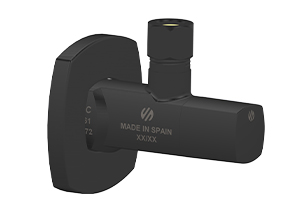

LIPSTICK Interior design valve

VITAQ with anti-lime system inside

The valve for design enthusiasts

LIPSTICK ANGLE VALVES are quarter-turn angle stop valves designed to be placed immediately upstream of a terminal fitting to shut off the water supply for servicing or replacement.

Two finished surfaces: Polished chrome-plated and matte black.
Metal handle: ergonomic, compact, and high endurance.
VITAQ System: more life, less limescale at higher temperatures.
Stem-ball with 6 mm bore: More flow, less energy loss.
One-piece stamped body, compact and with high endurance.
Double O-ring stem-ball, reinforces external leak tightness.
100% of the valves are leak tested.

Product scope:
